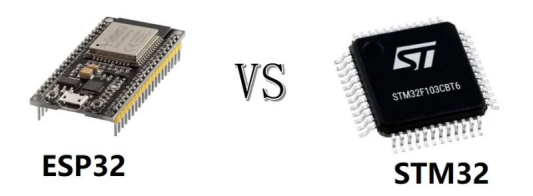

ESP32 vs STM32: What are Differences

 Choosing the right microcontroller for your project can be challenging with the wide range of options available. The ESP32, developed by Espressif Systems, and the STM32, produced by STMicroelectronics, are two popular choices in the realm of microcontrollers. Each offers unique features and specifications that cater to different application needs. In this article, we will compare the ESP32 and STM32 in terms of their features, specifications, advantages, and disadvantages to help you make an informed decision for your next project.

ESP32 vs STM32: Features and Specifications

ESP32 Features and Specifications

Processor Capabilities:

Developed by Espressif Systems, the ESP32 features a dual-core 32-bit MCU with an Xtensa processor, configurable as a dual-core or single-core unit, operating at clock speeds ranging from 160 to 240 MHz. It supports dual-mode Wi-Fi and Bluetooth, providing a computational power of up to 600 DMIPS. The ESP32 is designed for efficiency with features such as dynamic voltage scaling, multiple power-saving modes, and precise clock gating technology. It includes 320KB RAM and 448KB ROM, optimizing both performance and storage capacity.

Connectivity Options:

The ESP32 excels in connectivity with Bluetooth v4.2 BR/EDR and Wi-Fi 802.11 b/g/n. It supports multiple communication protocols, including I2C, I2S, SPI, and UART, catering to various application needs.

Peripheral Interfaces:

The ESP32 supports a variety of peripherals with 34 programmable GPIO pins, a 12-bit SAR ADC capable of handling up to 18 channels, dual 8-bit DACs, dual I2C interfaces, dual I2S interfaces, CAN bus 2.0, an Ethernet MAC interface supporting time protocols, and an infrared remote control. It also includes up to 16 channels of motor PWM and LED PWM, and a Hall effect sensor interface.

STM32 Features and Specifications

Processor:

Produced by STMicroelectronics, the STM32 series microcontrollers are built around ARM’s Cortex-M processors, including Cortex-M0, M0+, M3, and M7 models. The STM32F101 operates at 36 MHz, while the STM32F103 series operates at 72 MHz, with some models capable of up to 180 MHz. This flexibility allows users to balance power consumption and performance based on their specific needs.

Memory:

The STM32 microcontrollers come with up to 192 KB of general-purpose static memory, an additional 64 KB of core-coupled memory, and a small segment of battery-backed memory for data persistence. Flash storage capacities range from 512 KB to 2048 KB, providing ample space for complex applications.

Peripherals:

STM32 offers a wide range of peripherals, including USB 2.0 OTG and FS, CAN 2.0B, multiple I2C interfaces, USART, SDIO for SD/MMC cards, advanced timers, watchdog timers, temperature sensors, DMA for efficient data management, and CRC for error checking. The microcontroller also supports multi-channel ADC and DAC functions, crucial for sensor data and analog outputs.

ESP32 vs. STM32: Advantages and Disadvantages

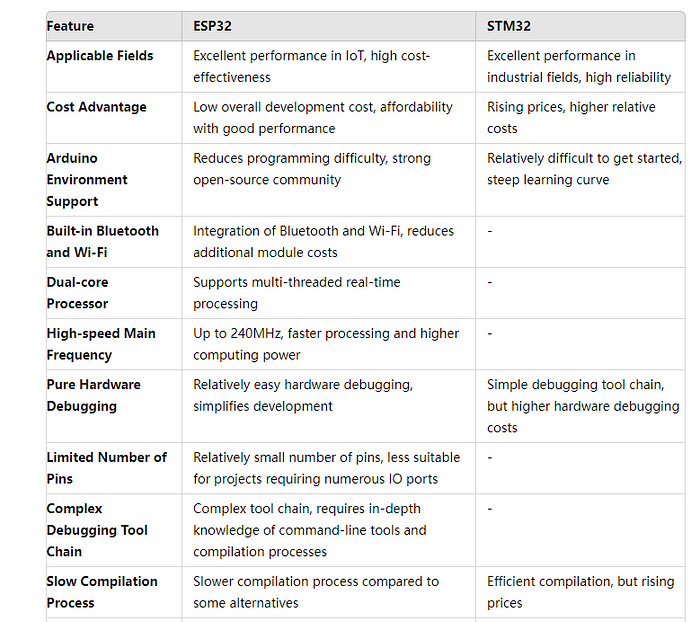

The ESP32 and STM32 microcontrollers are both powerful tools, each with its own set of strengths and weaknesses, making them suitable for different applications. While the ESP32 is known for its built-in Wi-Fi and Bluetooth connectivity, making it ideal for IoT projects, the STM32 excels in industrial control systems with its rich peripheral interfaces and robust performance. Below is a detailed comparison of their advantages and disadvantages:

ESP32 vs STM32: Which is better and How to choose

Choosing between ESP32 and STM32 depends on the specific application requirements, project complexity, and the developer’s experience level.

Application Areas

ESP32: Ideal for IoT and smart home applications due to its built-in Wi-Fi and Bluetooth capabilities. It simplifies the development process with its comprehensive SDK and development toolchain.

STM32: Best suited for industrial control systems, automotive electronics, and medical devices where robustness and extensive input/output functionality are crucial.

Development Complexity

ESP32: Easier to implement functions without extensive hardware expertise due to built-in connectivity features.

STM32: Requires more complex programming and setup but offers superior computing power and a broader range of peripheral interfaces.

Cost

ESP32: Generally more affordable, making it an attractive choice for projects with budget constraints.

STM32: Higher costs, especially for advanced models, but justifiable for applications requiring high performance and reliability.

FAQs about ESP32 vs STM32

Can ESP32 replace STM32?

The ESP32 cannot entirely replace the STM32 due to its current limitations in product line diversity, software ecosystem, and development tools. However, with improvements in these areas, ESP32 could potentially meet the needs of various application scenarios, especially in the IoT domain.

Why is ESP32 suitable for students?

ESP32 is suitable for students because of its cost-effectiveness, user-friendly Arduino environment, and strong community support. It provides an accessible platform for learning embedded development and IoT concepts, offering sufficient resources and tutorials to help students progress from beginners to more advanced levels.

Is ESP32 more cost-effective than STM32?

Yes, the ESP32 is typically more cost-effective, offering a lower overall development cost with good performance, making it suitable for budget-conscious projects.

Can ESP32 replace STM32 in industrial applications?

While ESP32 is excellent for IoT applications, it may not fully replace STM32 in industrial applications that require higher performance, reliability, and a broader range of peripheral interfaces.

What software is used to program the ESP32?

The ESP32 can be programmed using various software platforms, with Arduino IDE and MicroPython being popular choices. Arduino IDE offers a user-friendly interface, while MicroPython provides simplicity and clarity for embedded systems programming.

Conclusion

In summary, both the ESP32 and STM32 microcontrollers offer unique advantages that cater to different project needs. The ESP32 stands out in IoT applications with its built-in connectivity and cost-effectiveness, making it a popular choice for students and budget-conscious projects. On the other hand, the STM32 excels in industrial and high-performance applications with its robust peripherals and computing power. By understanding the strengths and weaknesses of each microcontroller, you can make an informed decision that aligns with your specific requirements and project goals.

Further Reading: ESP32 vs STM32: Which is Better and How to Choose 2024
