Overview of Popular Electronic Component Models（1）

 Introduction:

In electronic components, several exceptional devices have garnered attention for their high-performance capabilities and versatile applications. Below, we explore the specifications and features of each component, shedding light on their key attributes and common uses.

1. LM321MF - Operational Amplifier (Op-Amp)

LM321MF
LM321MF
Brief Description: An operational amplifier known for its high-performance attributes, ideal for signal amplification and filtering.

Performance Metrics:

  • Gain-Bandwidth Product: 1.3 MHz
  • Input Bias Current: 25 nA
  • Low Input Noise: 0.6 μV/√Hz

Typical Applications: Widely used in signal amplification, comparators, filters, and precision measurement circuits.

[Learn more about LM321MF, including definition, key features, applications, equivalent parts, replaceable parts specifications, and datasheet.]

2. IRF9640S - P-Channel MOSFET

IRF9640S
IRF9640S
Brief Description: A high-efficiency P-Channel MOSFET designed for power amplifiers and switching power supplies.

Performance Metrics:

  • Rated Voltage: 200 V
  • Maximum On-State Resistance: 0.45 Ω
  • Switching Time: 30 ns

Typical Applications: Suited for high-efficiency power amplifiers, power supply switches, and high-frequency inverters.

[Learn more about IRF9640S, including definition, key features, applications, equivalent parts, replaceable parts specifications, and datasheet.]

3. DS1302S - Real-Time Clock (RTC)

DS1302S
DS1302S
Brief Description: A low-power real-time clock chip designed for electronic devices requiring precise timekeeping.

Performance Metrics:

  • Operating Current: 2 μA
  • Clock Accuracy: ±2 minutes/month
  • SPI Interface

Typical Applications: Commonly employed in embedded systems, timers, and data loggers.

[Learn more about DS1302S, including definition, key features, applications, equivalent parts, replaceable parts specifications, and datasheet.]

4. TL072CPS - Dual Operational Amplifier (Op-Amp)

TL072CPS
Brief Description: A low-noise, high-performance dual operational amplifier suitable for audio and signal processing applications.

Performance Metrics:

  • Gain-Bandwidth Product: 3 MHz
  • Input Bias Current: 30 pA
  • Low Noise: 18 nV/√Hz

Typical Applications: Ideal for high-fidelity audio amplifiers, filter design, and signal conditioning circuits.

[Learn more about TL072CPS, including definition, key features, applications, equivalent parts, replaceable parts specifications, and datasheet.]

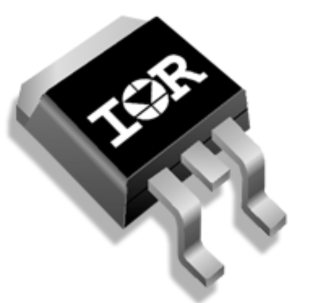

5. IRF520NS - N-Channel MOSFET

IRF520NS
IRF520NS
Brief Description: An N-Channel MOSFET tailored for high-current, high-voltage switching applications.

Performance Metrics:

  • Rated Voltage: 100 V
  • Maximum On-State Resistance: 0.27 Ω
  • High Switching Speed

Typical Applications: Commonly used in motor drives, LED matrix control, and pulse generators.

[Learn more about IRF520NS, including definition, key features, applications, equivalent parts, replaceable parts specifications, and datasheet.]
